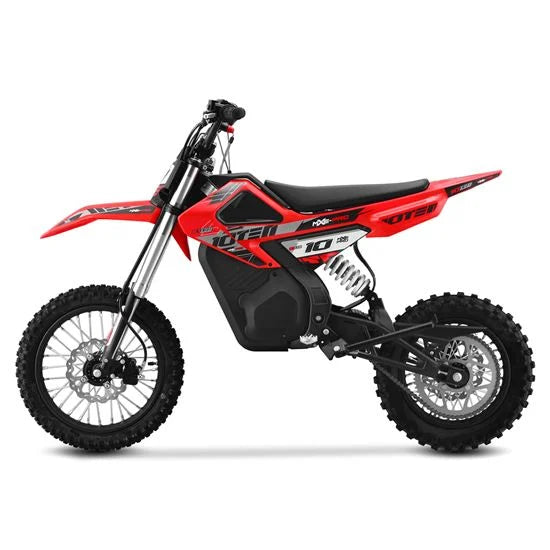

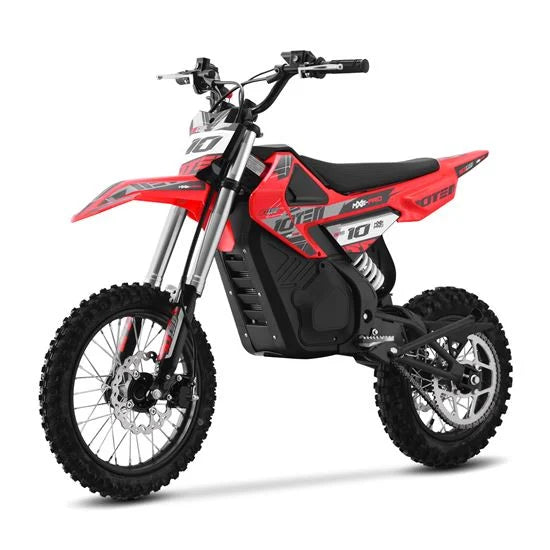

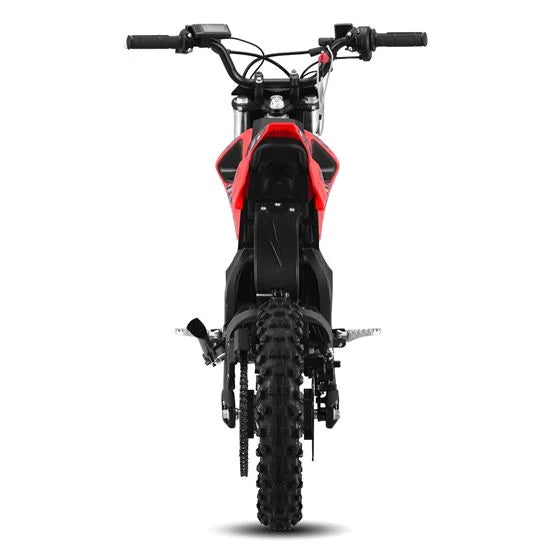

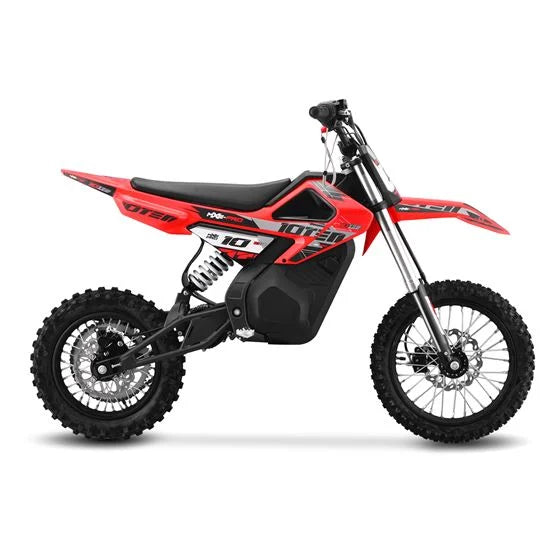

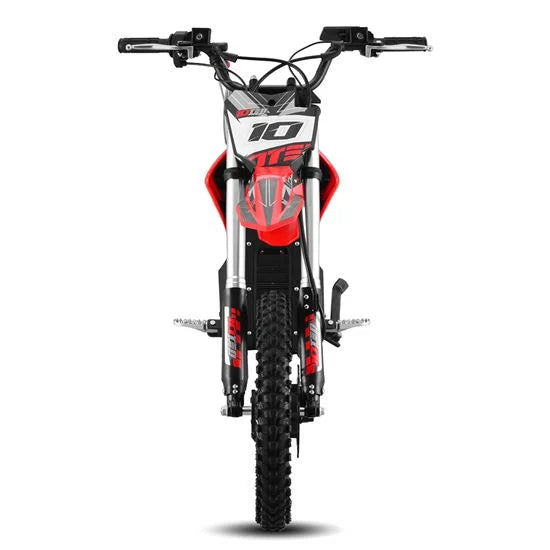

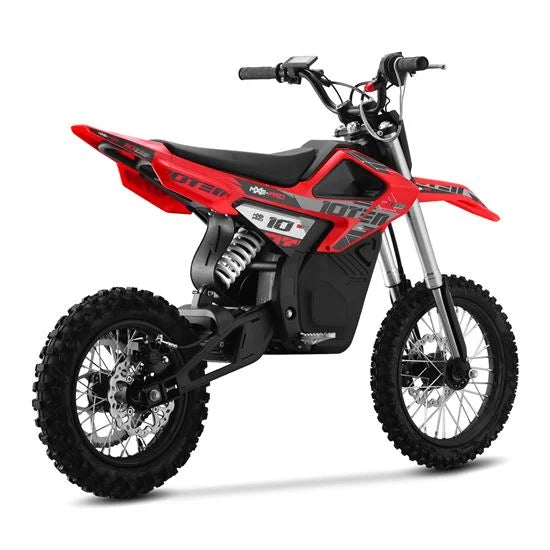

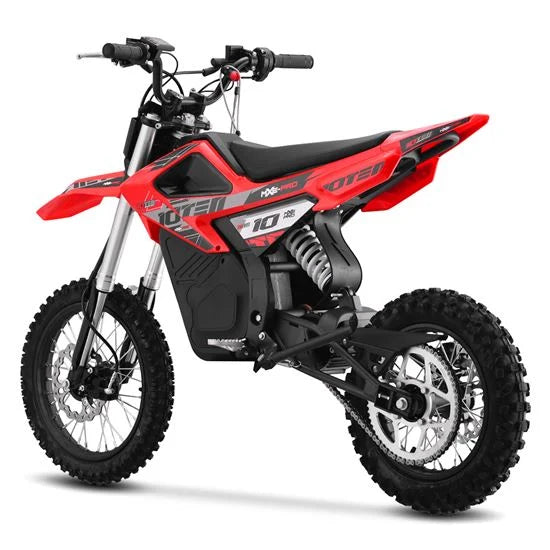

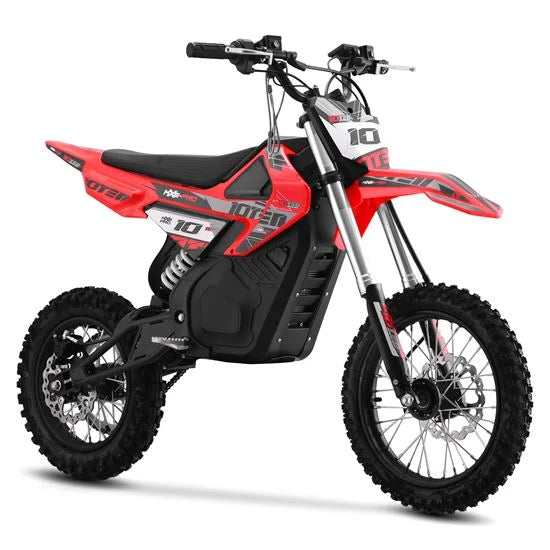

10TEN MXE-PRO Electric Dirt Bike – 60V 4000W – 14/12
The 10TEN MXE-PRO takes the compact electric dirt bike platform and gives it some serious performance.
Powered by a 60V electric drive system with a direct-drive motor producing up to 4,000W peak power, the MXE-PRO combines instant electric response with proper off-road bike proportions. With 14-inch front and 12-inch rear wheels, inverted front suspension and hydraulic rear braking, it's built as much more than a basic electric balance bike.
Three selectable speed settings of 25, 45 and 75km/h allow the performance to be tailored to the rider and conditions. At its maximum setting, the MXE-PRO is capable of a claimed 75km/h (46.6mph), while the lower settings provide a useful way of keeping the performance more manageable when full power isn't required.
At the heart of the bike is a 60V 20Ah battery using 21700 cells, feeding a 2,000W rated motor with 4,000W peak output. The motor itself produces up to 35.7Nm, with the gearing delivering a quoted 194Nm peak torque at the vehicle.
The result is the kind of immediate torque delivery that makes electric off-road bikes so much fun – no clutch, no gears and no waiting for an engine to build revs.
60V Power with Three Speed Settings
Rather than simply chasing a headline power figure, the MXE-PRO gives the rider three usable speed settings:
- 25km/h
- 45km/h
- 75km/h
That gives the bike a much broader range of performance than a single unrestricted setting.

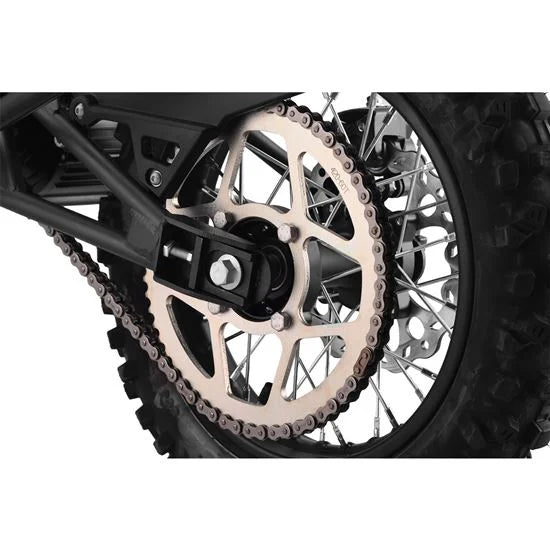

The 120 direct-drive motor uses a 1:1 motor reduction with an 11:60 final sprocket combination, driving the rear wheel through a heavy-duty 420H chain.
With no conventional gearbox or clutch to operate, power delivery is simple and direct – twist the throttle and go.
60V 20Ah Battery
Supplying the motor is a 60V 20Ah lithium battery using 21700 cells, giving the MXE-PRO a manufacturer-stated range of approximately 25–50km per charge.
Actual range will naturally depend on rider weight, terrain, speed setting, riding style and conditions.
A 67.2V 3A charger is supplied, with a quoted charging time of approximately 7 hours.
Proper Dirt Bike Chassis
The MXE-PRO is built around a steel double square-tube main frame rather than trying to disguise a lightweight balance-bike chassis underneath dirt bike bodywork.
It's paired with a steel rear swingarm, inverted front forks and a rear damping shock absorber.
With 270mm of ground clearance, there's useful clearance underneath the bike for uneven ground, while the 1,030mm wheelbase keeps the overall package compact.
The MXE-PRO weighs 55.2kg and has a maximum stated load capacity of 75kg.
14/12 Off-Road Wheel Setup
The MXE-PRO runs a classic staggered off-road wheel combination with a larger front wheel helping the bike deal with bumps and uneven surfaces.
Up front is a 14 x 1.4 steel wheel fitted with a 60/100-14 tyre, while the rear uses a wider 12 x 1.6 wheel with an 80/100-12 tyre.
Combined with the 750mm seat height, this gives the MXE-PRO compact dirt bike proportions without moving into full-size motocross bike territory.

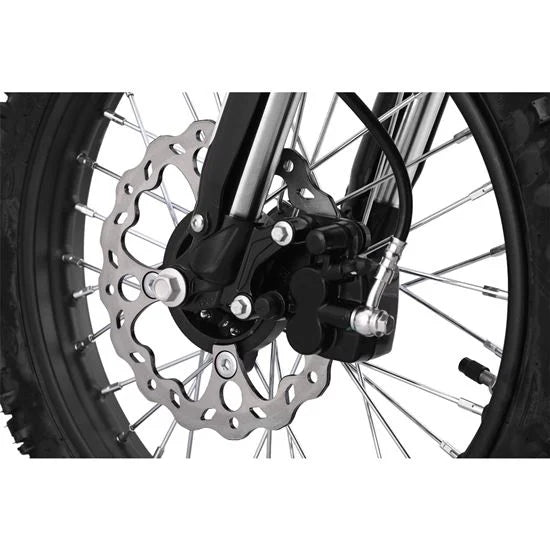

Disc Braking Front and Rear

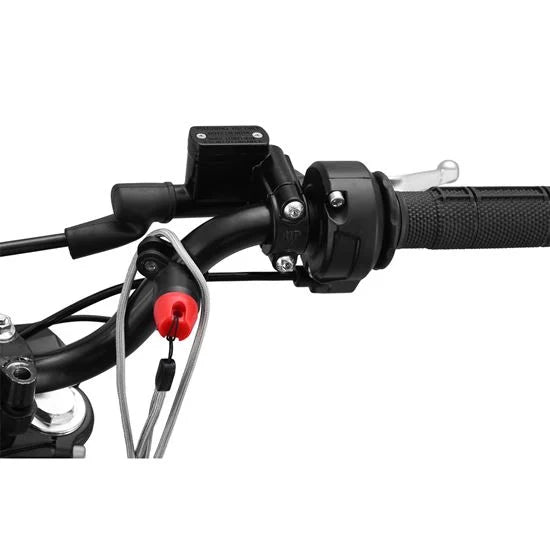

Both brakes are hand operated, keeping the controls straightforward.
The bike uses 190mm brake discs at both ends, with the specification confirming a hydraulic rear disc brake.
The supplied information only describes the front as a disc brake, so we would want to confirm whether the front brake is hydraulic before advertising it as such.
MXE-PRO Key Features
-
60V electric dirt bike
-
2,000W rated motor
-
4,000W peak power
-
35.7Nm motor peak torque
-
194Nm quoted vehicle peak torque
-
Three speed settings – 25 / 45 / 75km/h
-
Maximum claimed speed of 75km/h / 46.6mph
-
60V 20Ah lithium battery
-
21700 battery cells
-
Manufacturer-stated 25–50km range
-
14-inch front / 12-inch rear wheels
Inverted front suspension
Rear damping shock absorber
-
190mm front and rear brake discs
Double square-tube steel main frame
Steel rear swingarm
-
270mm ground clearance
-
750mm seat height
-
420H drive chain
-
11:60 final sprocket combination
-
Maximum stated load 75kg
